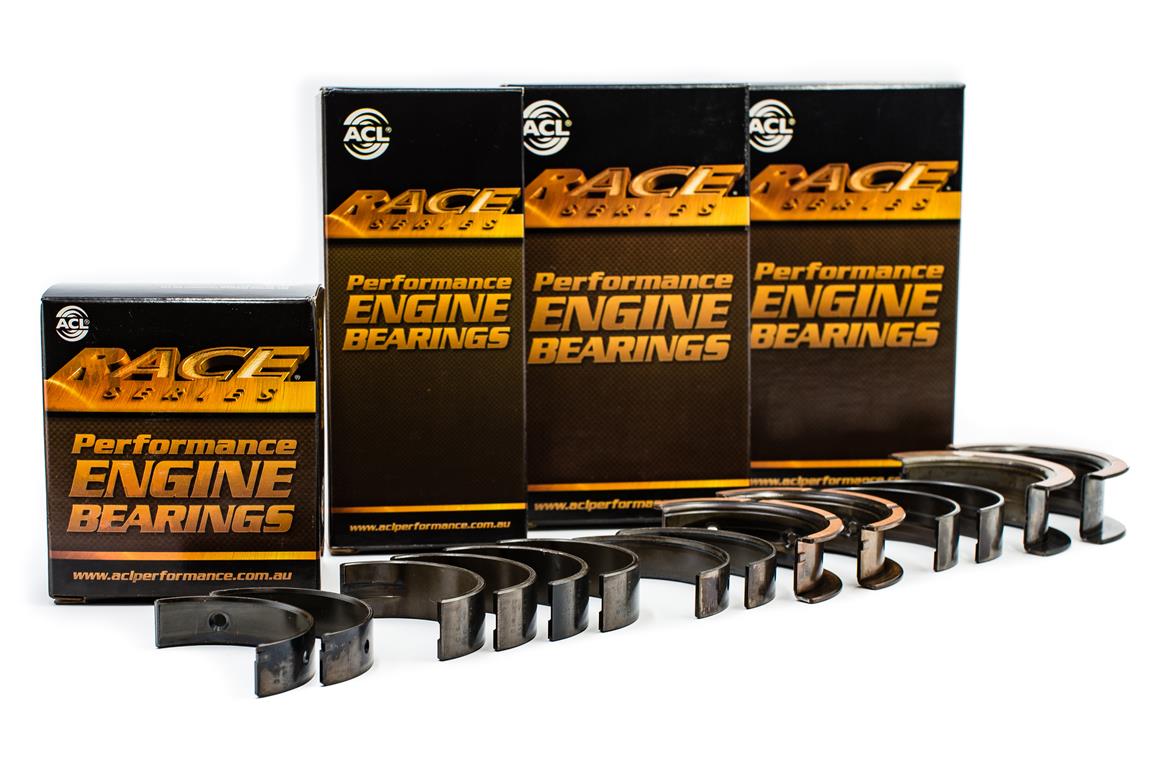

Toyota 1JZ / 2JZ ACL Race Series Main Bearings - STD
Toyota 1JZ / 2JZ ACL Race Series Main Bearings - STD
Regular price
£144.00 GBP
Regular price
Sale price
£144.00 GBP
Unit price
/
per
Taxes included.
Couldn't load pickup availability
High performance Trimetal engine bearings.
Designed to withstand higher RPM conditions.
High strength overlay plate with reduced thickness for improved fatigue properties.
Oversize bearings (.025, .25) also available, please enquire for more details.
Specifications for STD size only
|
Sizes |
STD, .025, .25 |
|
Oil Clearance |
|
|
Half Type |
Upper & lower |
|
Material |
F780 |
|
Min. Std Shaft Size |
61,984 mm / 2.4403 in |
|
Max. Std Shaft Size |
62,001 mm / 2.4410 in |
|
Min. Std Tunnel Size |
66,02 mm / 2.5992 in |
|
Max. Std Tunnel Size |
66,035 mm / 2.5998 in |
|
Max Wall at Crown |
2,004 mm / 0.0789 in |
|
Max Overall Length |
20 mm / 0.7874 in (8103H) 23 mm / 0.9055 in (8104H) |
