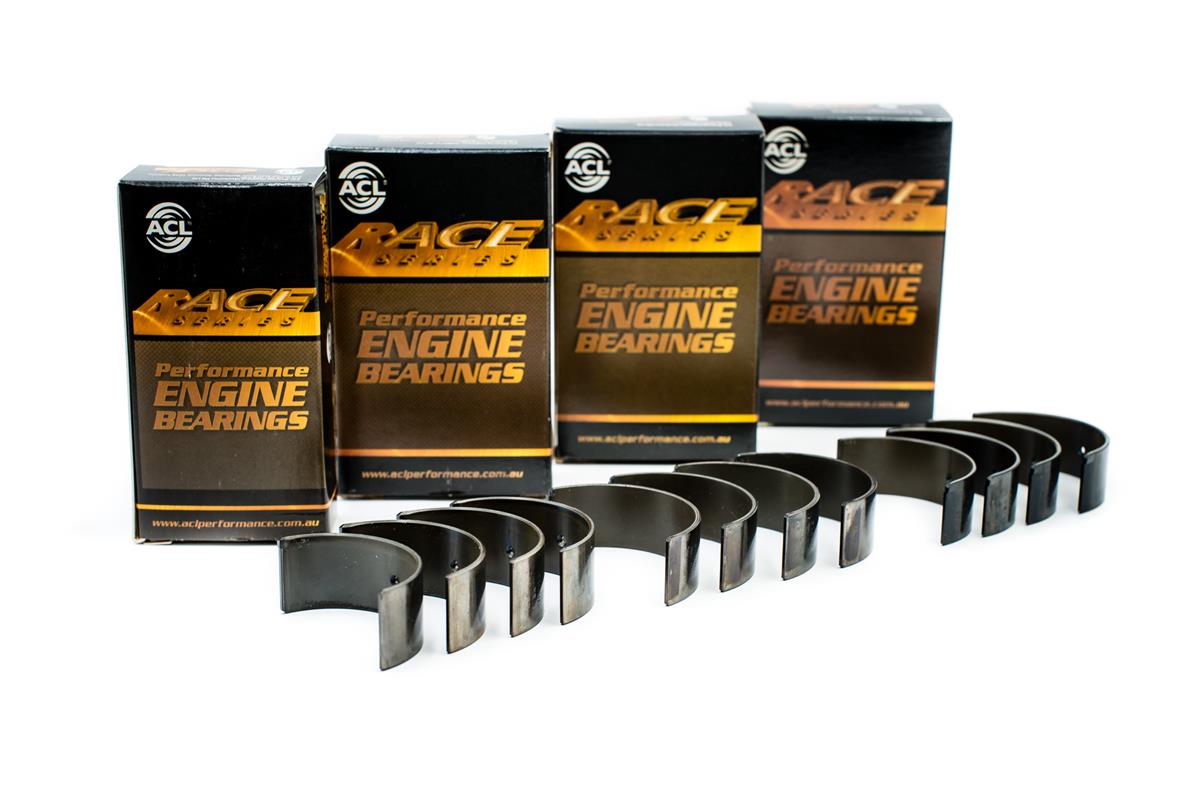

Toyota 1JZ / 2JZ ACL Race Series Con Rod Bearings - STD
Toyota 1JZ / 2JZ ACL Race Series Con Rod Bearings - STD
Regular price
£120.00 GBP
Regular price
Sale price
£120.00 GBP
Unit price
/
per
Taxes included.
Couldn't load pickup availability
High performance Trimetal engine bearings.
Designed to withstand higher RPM conditions.
High strength overlay plate with reduced thickness for improved fatigue properties.
Oversize bearings (.025, .25) also available, please enquire for more details.
Specifications for STD size only-
|
Sizes |
STD, .025, .25 |
|
Oil Clearance |
|
|
Half Type |
Identical halves |
|
Material |
F781 |
|
Min. Std Shaft Size |
51,981 mm / 2.0465 in |
|
Max. Std Shaft Size |
52 mm / 2.0472 in |
|
Min. Std Tunnel Size |
55,024 mm / 2.1663 in |
|
Max. Std Tunnel Size |
55,042 mm / 2.1670 in |
|
Max Wall at Crown |
1,506 mm / 0.0593 in |
|
Max Overall Length |
19,3 mm / 0.7598 in |
