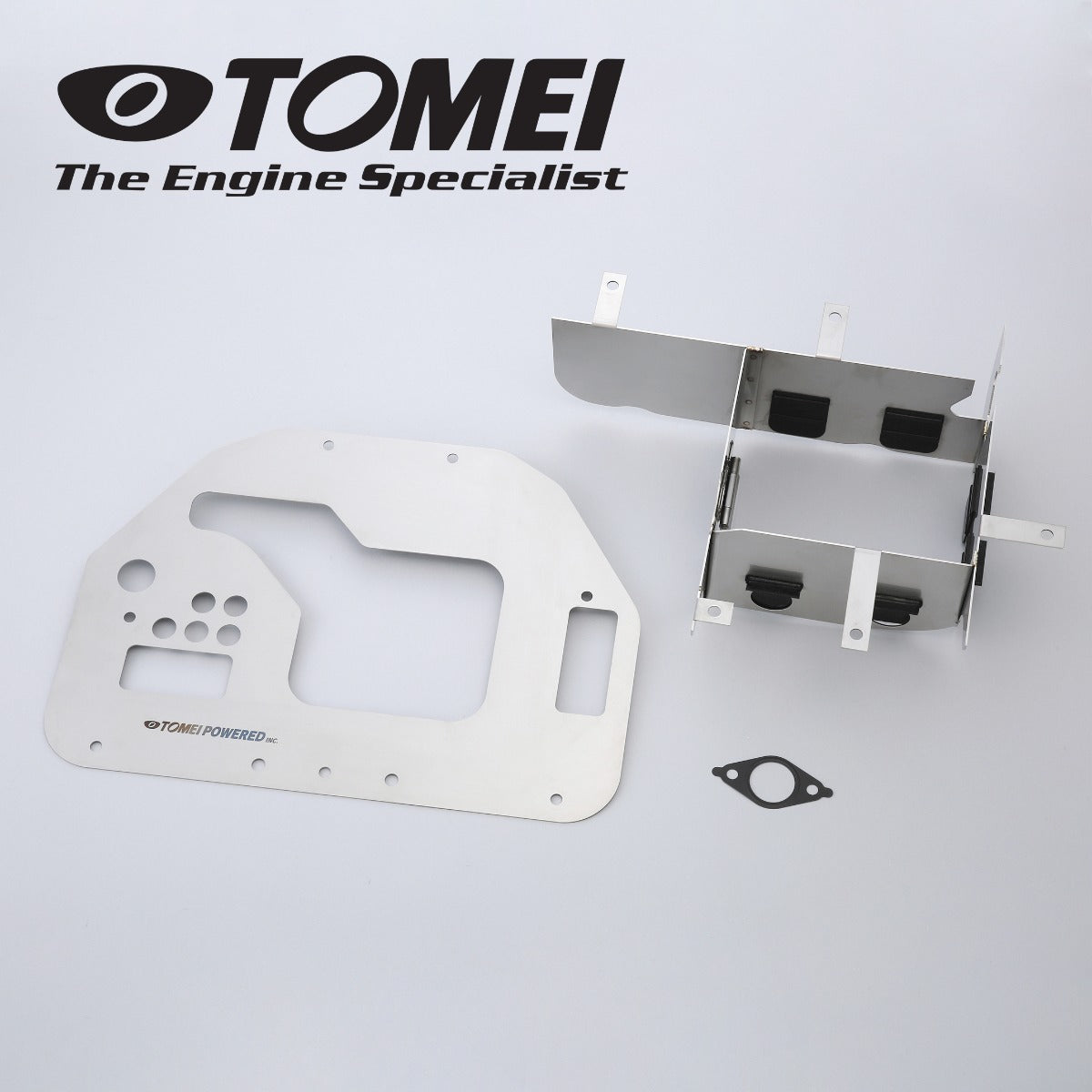

Tomei Oil Pan Baffle Plate Kit - Toyota 1JZ / 2JZ

Protect your engine under strong G-force on track!

The TOMEI baffle plate is designed to prevent this problem from happening especially when the car is used for competition use.

During hard acceleration, deceleration and cornering, the sudden change in inertial forces will cause the oil to jump and move around too much. When this happens, the oil can move away from the oil pickup, which then in turn cuts oil supply to the engine.

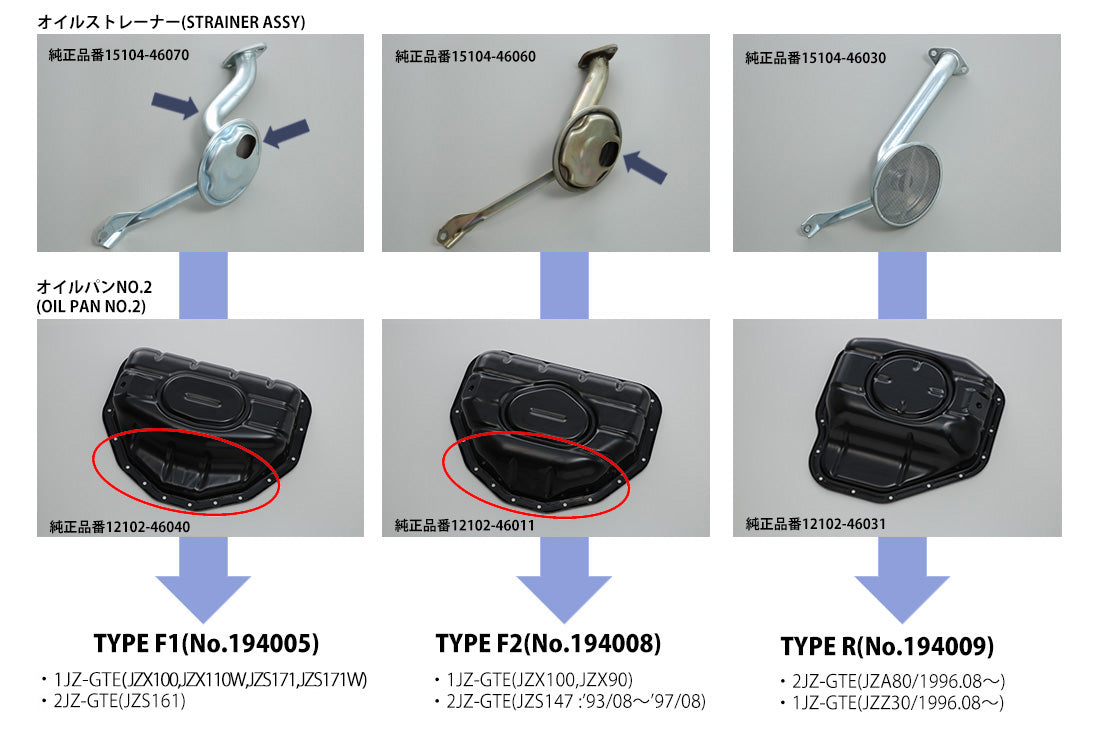

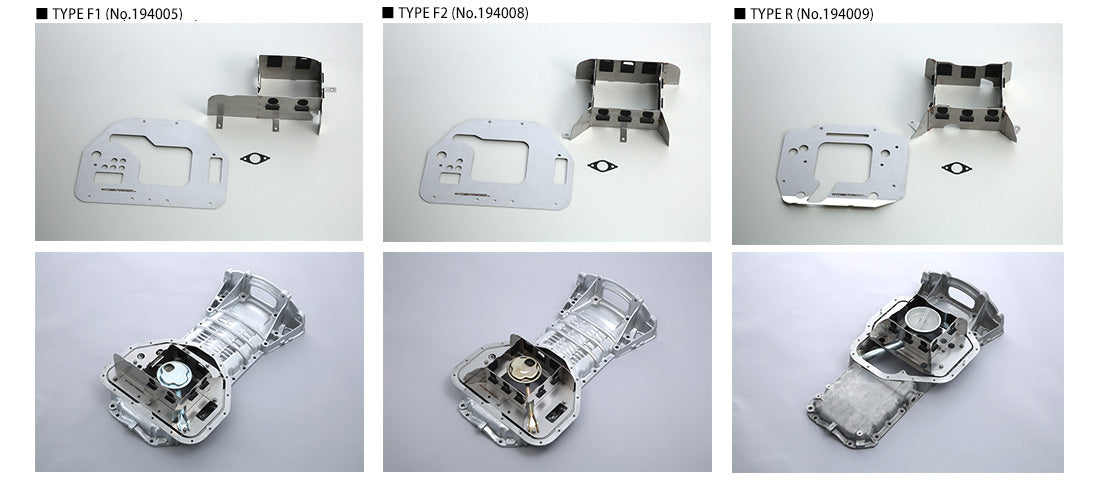

3 model variants are available for the following Toyota models. Please select which type from the drop-down box above when purchasing.

TYPE F1
• Toyota Mark II JZX110
• Toyota Verossa JZX110
• Toyota Mark II Blitz JZX110W
• Toyota Crown JZS171
• Toyota Crown Estate JZS171
• Toyota Aristo JZS161

TYPE F2
• Toyota JZX100 Chaser / Mark II / Cresta
• Toyota JZX90 Chaser / Mark II / Cresta
• Toyota Aristo JZS147

TYPE R
• Toyota Supra JZA80
• Toyota Soarer JZZ30

*Make sure the oil pan and oil strainer you are installing this product with are the right application prior to the installation.

*The Lower Baffle of this kit will interfere with the oil level sensor float. Please note that this product has been designed to use without the oil level sensor.
