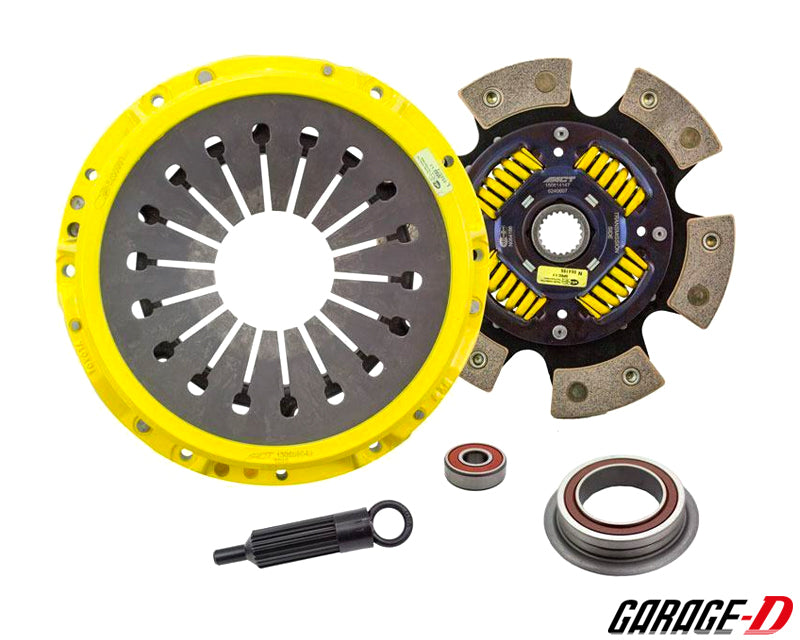

R154 ACT Heavy Duty Race Spring 6 Pad Clutch - Toyota

Our clutch of choice for Toyota R154 (pull type) street car applications up to 500bhp.

TS2-HDSS kit features ACT's most popular Heavy Duty pressure plate and most popular street disc. ACT Heavy Duty pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's Performance Street discs feature premium organic materials with high copper content for better heat transfer and steel-backed lining for greater burst strength and durability. These discs have reduced marcel for faster shift action to complement ACT pressure plates, with increased strength and reliability.

Feel: Light to moderate pedal effort, smooth positive engagement, OE to mild gear rattle;

Life: Longer friction life, extended by ACT's exclusive diaphragm design;

Quality: Carefully engineered, precisely assembled, accurately balanced, with premium organic friction materials for heat tolerance and reduced fade;

Recommended Use: Recommended for street and race use;

ACT Difference: 100% clamp load tested and dynamically computer balanced for smooth high RPM reliability;

Item Description

HD/Perf Street Sprung

Product Weight (lbs.)

22.6

Torque Capacity (ft/lbs.)

445

Torque Capacity Over OE

47%

Disc Material

Organic

Friction Surface Diameter (Inches)

9.4

Friction Surface Diameter (mm)

240

Input Shaft Diameter (Inches)

1-1/8

Spline Count

21

Disc Type

Sprung Street Disc

Pressure Plate Type

Heavy Duty
