GKTECH - Nissan BM57 Brake Master Cylinder
GKTECH - Nissan BM57 Brake Master Cylinder
Couldn't load pickup availability

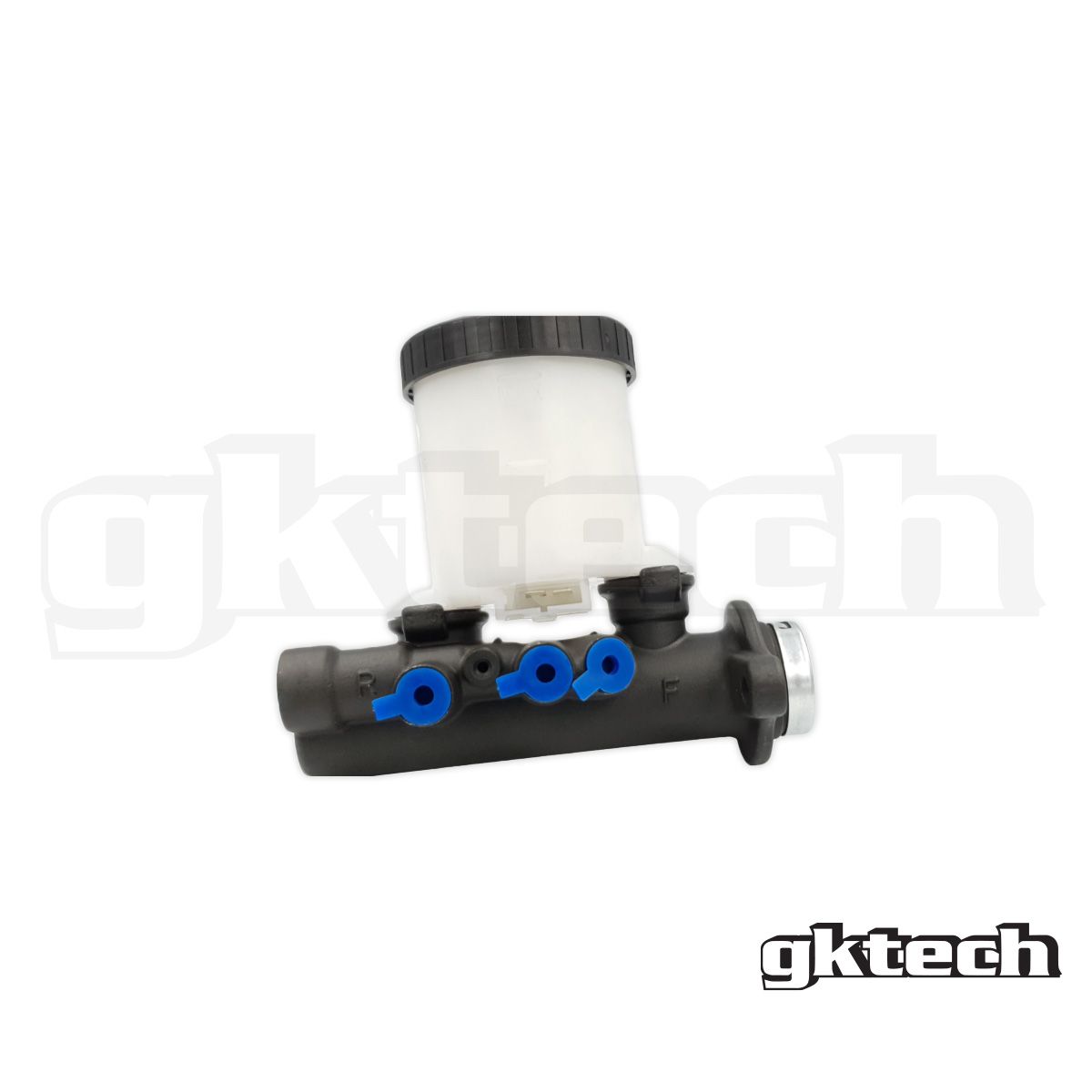

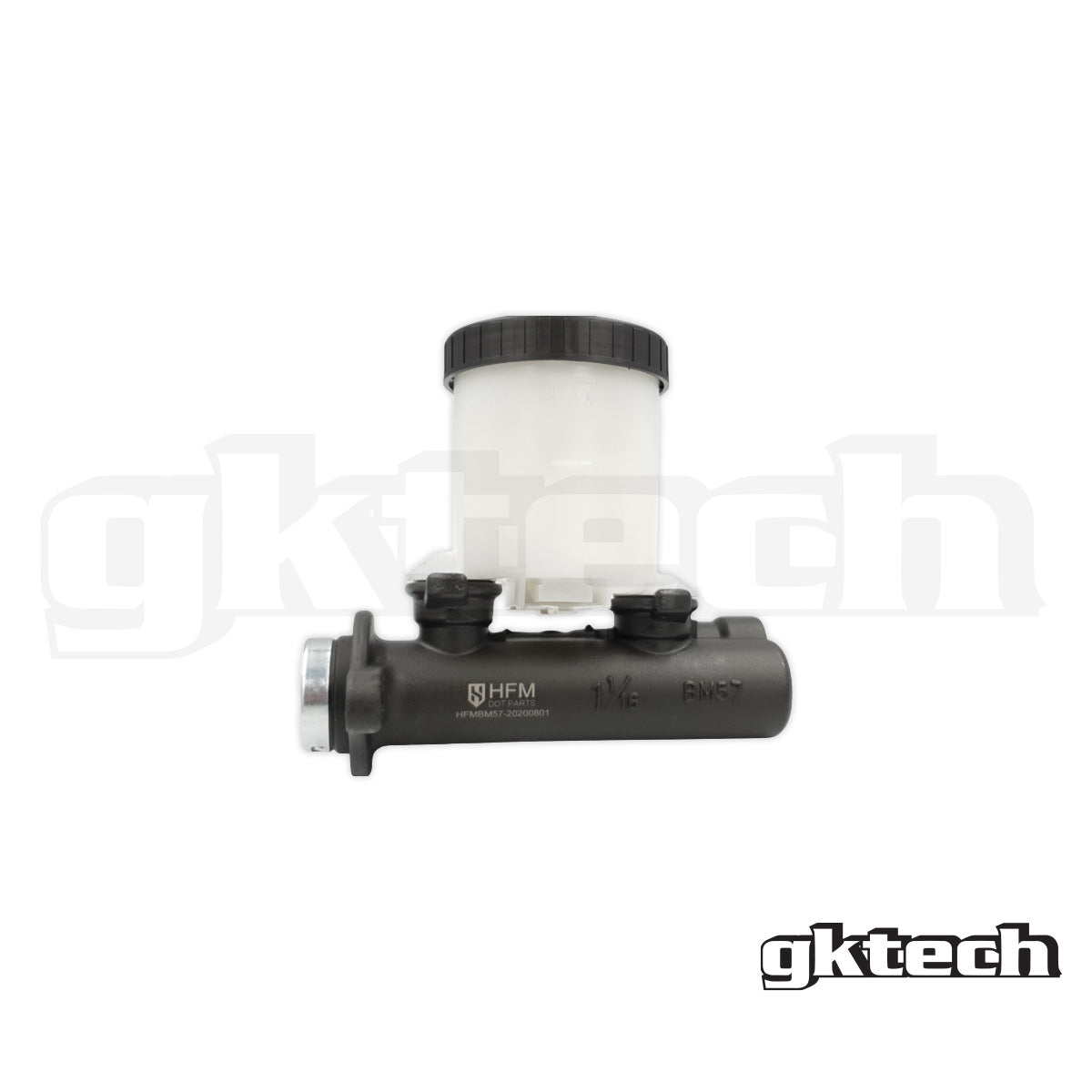

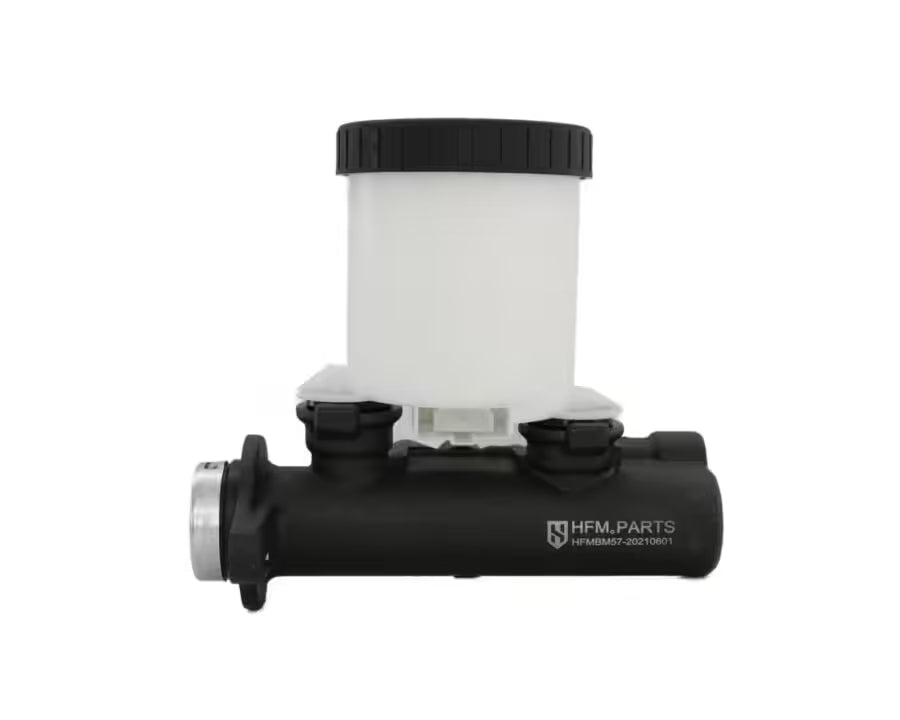

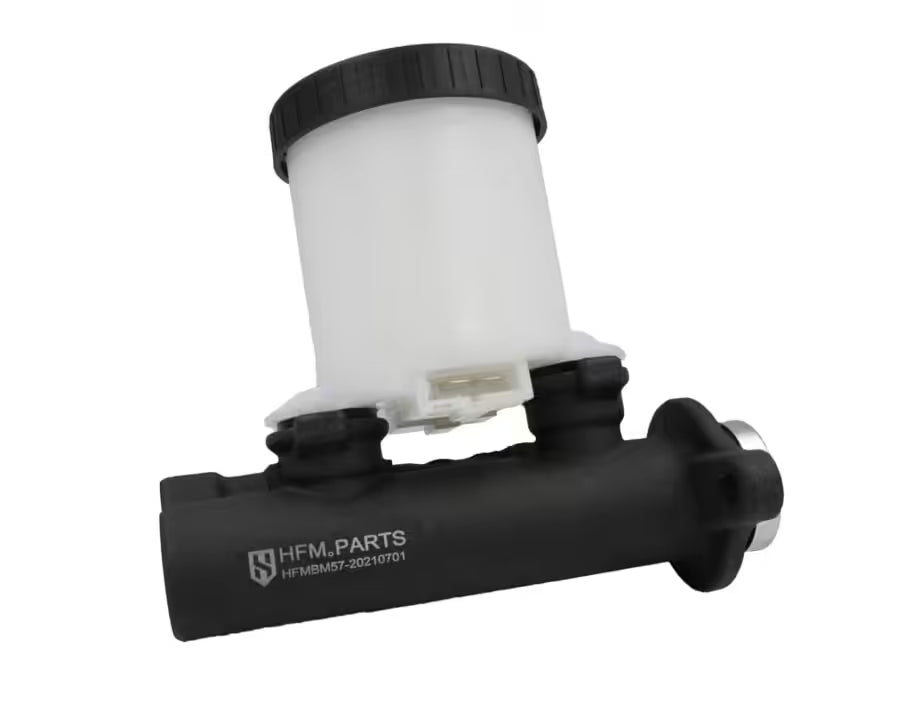

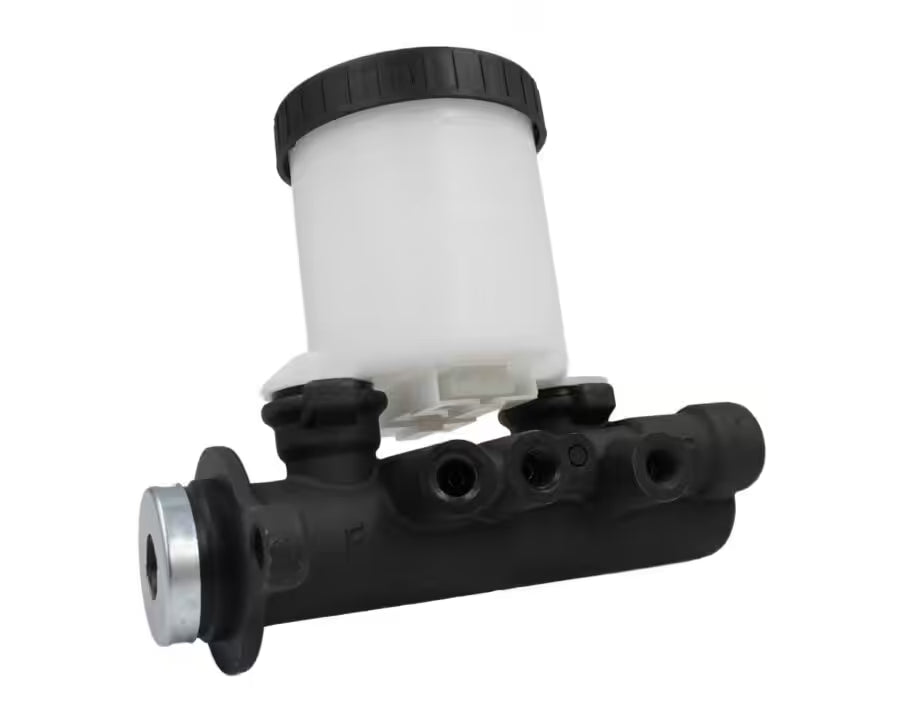

The HFM.Parts BM57 Master Cylinder features a 17/16 inch (27mm) piston bore size and is suited to both ABS and Non-ABS setups.
Perfect for if you intend to increase your braking performance and reduce that spongy pedal, giving a shorter, firmer pedal.
Vehicle Compatibility:
Nissan Z32 300ZX
Nissan 180sx
Nissan S13 Silvia
Nissan S14 200sx
Nissan S15 200sx
Nissan Skyline R32
Nissan Skyline R33
Nissan Skyline R34
The product is suited for RHD models only.
NOTE - If you have ABS you will need to block the middle port with the provided tapered grub screw.
NOTE - The brake lever switch is a square plug, if your current one is different it will need to be modified to suit.
FAQ'S
My brake lines feed from the top/bottom, can I still use this Brake Master?
Yes. Although our brake master is designed with side ports, most brake lines can be massaged around until they reach the brake master’s ports.
The fluid sensor connector is on the wrong side, what can I do?
You can easily swap the sensor connector to either side of the BM57 by following these steps. On the terminal side, push a small flat screwdriver in between the sensor connector and the bottom of the reservoir to lightly pry apart the lock tab. On the opposite side of the sensor connector, push through to pop it out. This is much easier to do prior to installation!
