Exedy Hyper Twin Plate Clutch 1JZ / 2JZ > R154

Exedy Hyper Twin for Toyota 1/2JZ Applications with R154 gearbox

For high-powered applications, the EXEDY plate clutch is capable of handling a variety of road and motorsport applications.

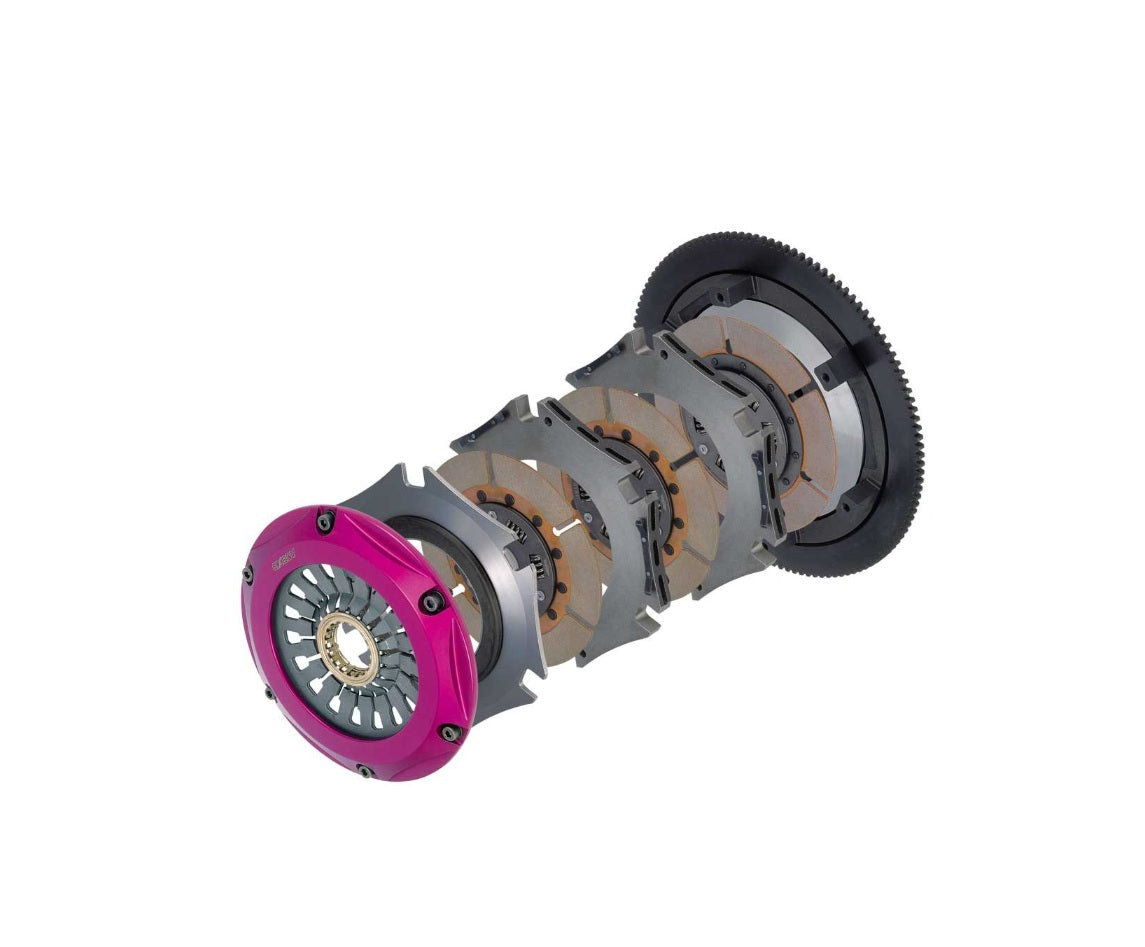

All Hyper Series clutches come with a chromoly steel flywheel and forged aluminium clutch cover, which has no clamp load deflection as found in a pressed metal cover.

Part Number - TM032SD
Kit Type - Hyper Twin
Engine Code - 1JZ / 2JZ
Disc Diameter - 200mm
Disc Facing - Cerametallic
Clutch Type - Pull
Sprung Centre Disk? - Yes
Torque @ Flywheel - 620 lb.ft./830 Nm
Torque @ Wheels - 500 lb.ft./670 Nm
Kit Includes flywheel

Main Benefits

• Capable of handling high torque capactities whilst retaining comforable driveability.
• Cushion function allows for the bite point to be twice as large when compared to alternative brands (PAT)
• Self-levelling intermedite plate design reduces gearbox rattle and increases the disengagement performance (PAT)
• Unique intermediate plate design increases heat resistance with improves clutch life
• A 20 to 30% reduction in inertia over the original equipment part.

Suitable For

• Road
• Track Day
• Circuit Racing
• Time Attack
• Drifting
• Drag Racing

Pull Type Clutch Cusioning Function (PAT.)

The cushion function is an innovation unique to EXEDY. The half engaged zone is expanded as a result of a decrease in rigidity of the pivot ring. Ideal pedal effort is achieved as a result of a longer lever ratio of the diaphragm spring coupled with the cushion reaction force.
